Acoustic Floor Mat 26
Acoustic Floor Mat 26 is a 3D-profiled, highly resilient form of impact sound insulation based on a combination of polyurethane and cork. The AFM 26 is used under floating screeds and is also particularly elastic and free from harmful plasticizers that would affect the interior air quality. Typical locations for use include supermarkets.
Product properties AFM 26
- Impact sound reduction ∆Lw: 26 dB
- Dynamic stiffness st': ≤ 20 MN/m³
- Load range: 5,000 kg/m²
- Thickness: 10 mm
- Delivery form: 1500x1200 mm
- Weight by area: 2.2 kg/m2
- Compressibility c: ≤ 1 mm
- Flammability: Class E
- Thermal conductivity λ: 0.06 W/mK

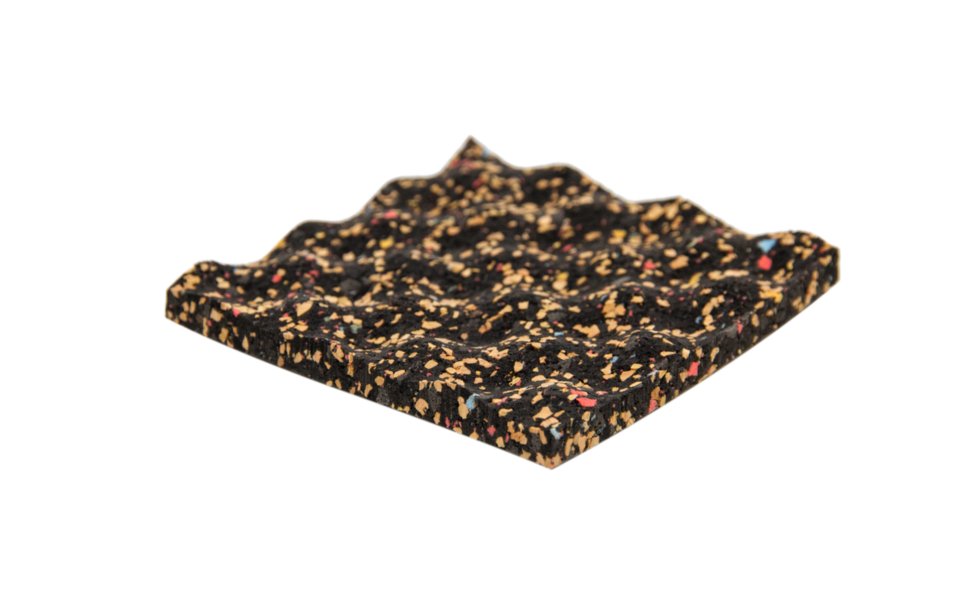

![Acoustic_Floor_Mat_26_Sample_Freisteller Acoustic_Floor_Mat_26_Sample_Freisteller](/uploads/media/970x600/03/11373-Acoustic_Floor_Mat_26_Sample_Freisteller.png?v=1-0)

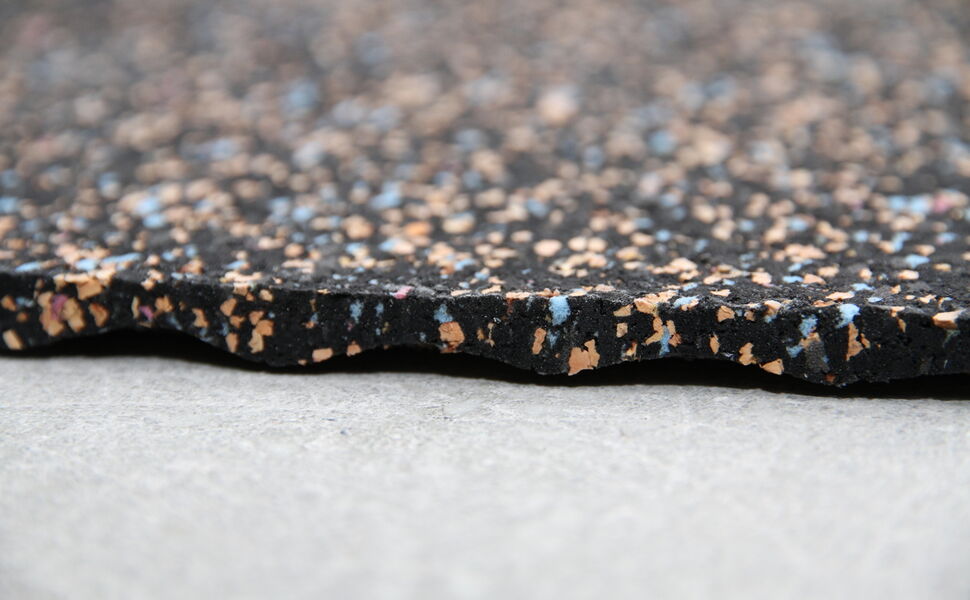

![AFM 26 (3) AFM 26 (3)](/uploads/media/970x600/04/11374-AFM%2026%20%283%29.jpg?v=1-0)

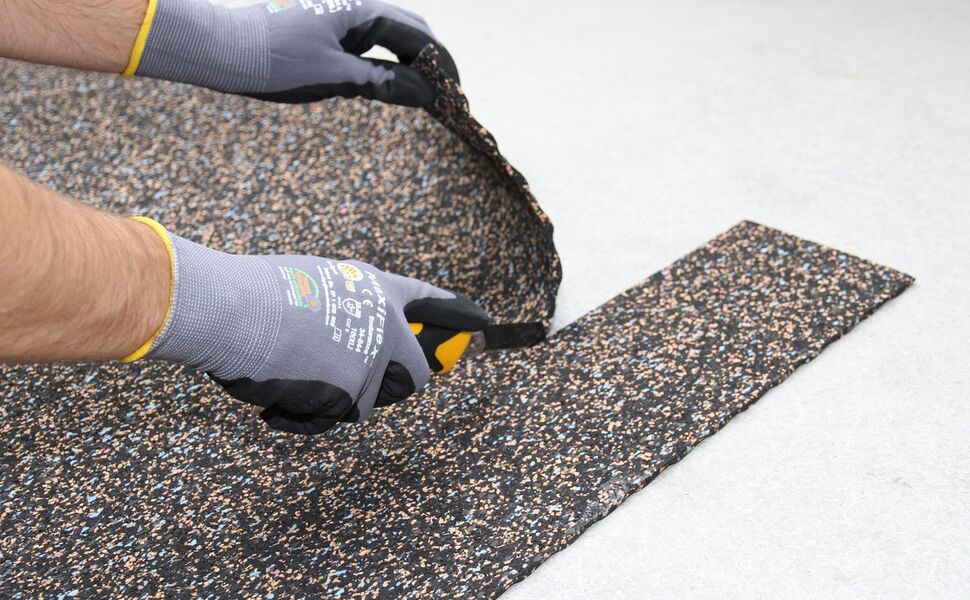

![Verlegung AFM 26 Verlegung AFM 26](/uploads/media/970x600/06/11376-Verlegung%20AFM%2026.jpg?v=1-0)

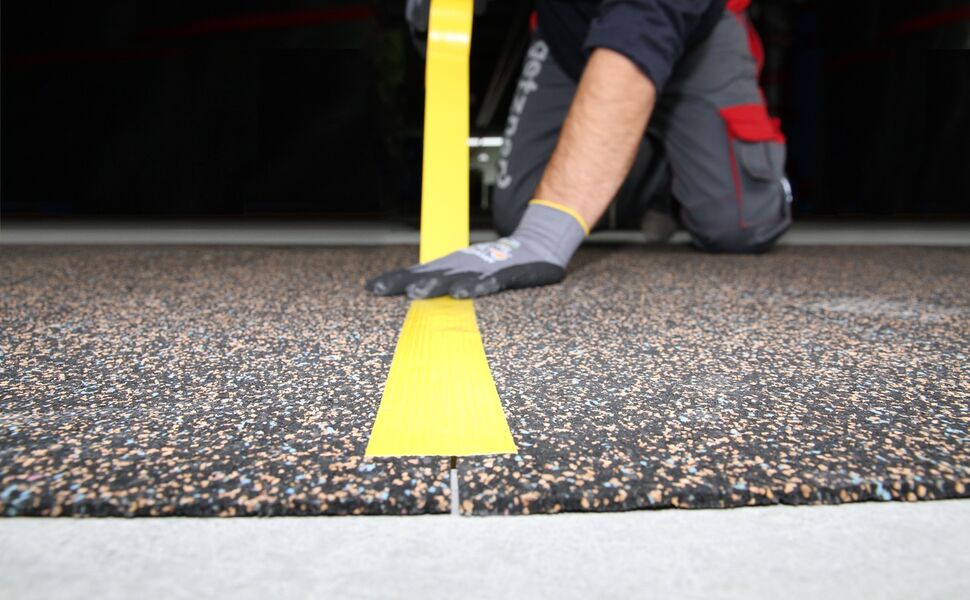

![Verlegung AFM 26 (3) Verlegung AFM 26 (3)](/uploads/media/970x600/05/11375-Verlegung%20AFM%2026%20%283%29.jpg?v=1-0)

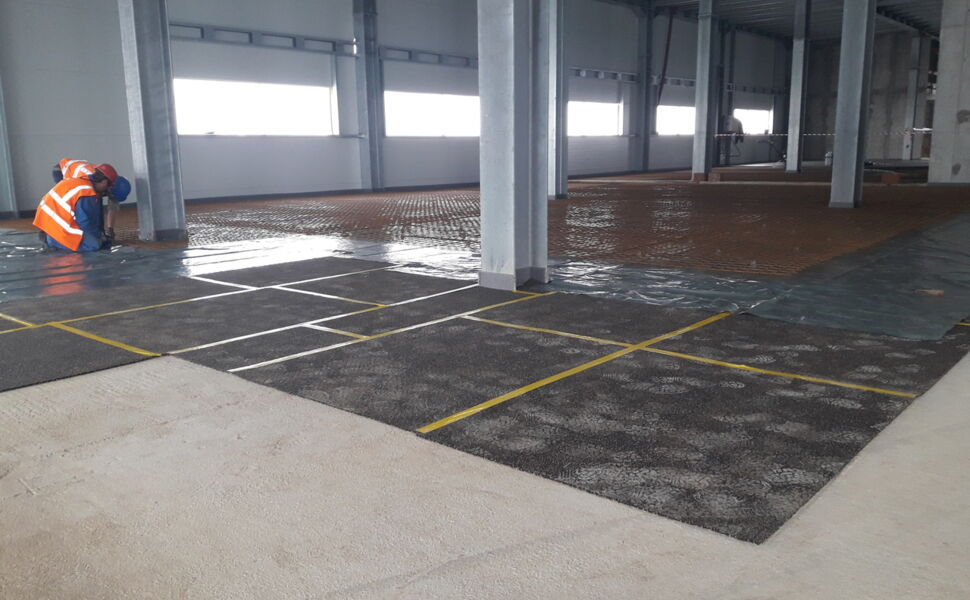

![Acoustic Floor Mat 26 Laboratory Lubljana Acoustic Floor Mat 26 Laboratory Lubljana](/uploads/media/970x600/05/12935-Acoustic%20Floor%20Mat%2026%20Laboratory%20Lubljana.jpg?v=1-0)
1
/ 5
Advantages and benefits
- Low installation height and therefore particularly suitable for renovation projects
- Resistant to high loads
- Quick installation and no need for bonding to the subsurface
- Easy handling
Overview of Acoustic Floor Mat portfolio
![Overview Acoustic Floor Mat Types - AFM 26 Overview Acoustic Floor Mat Types - AFM 26](/uploads/media/970x600/01/18141-Overview%20Acoustic%20Floor%20Mat%20Types%20-%20AFM%2026.jpg?v=1-0)
