Isotop® sandwich vibration damping pads

Sandwich vibration damping pads are innovative vibration isolators characterised by their high stability and low weight. They typically consist of a pressure distribution plate and an isolating layer. The isolating layer is often made from lightweight materials such as polyurethane foam. The pressure distribution plates in sandwich elements are mainly produced from strong materials like aluminium, steel or fibre composites (e.g. glass fibre or carbon fibre) to distribute the load evenly.

Our Isotop® sandwich vibration damping pads are impressive:

High structural strength despite low weight, due to a combination of strong pressure distribution plates and lightweight isolating layers.
Exceptional acoustic insulation properties – ideal for applications where sound control is important.
Simple installation, low maintenance requirements and therefore lower operating costs.

The right Isotop® sandwich vibration damping pad for every application

Isotop® SE pro

Sandwich vibration damping pads with high-quality vibration isolation for load ranges between 90 kg and 2050 kg
Overall height 51.5 mm
Isolating layer made from Sylomer® or Sylodyn® with 37.5 mm thickness
Natural frequency from 7.5 Hz
Electro-galvanised pressure distribution plate
4 mm anti-slip mat
M12 internal thread

Data sheet

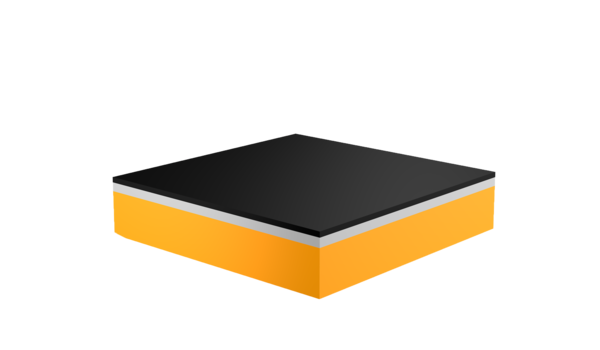

Isotop® SE light

Sandwich vibration damping pad for load ranges between 63 kg and 930 kg
Overall height 33 mm
Isolating layer made from Sylomer® with 25 mm thickness
Natural frequency from 10.8 Hz
Electro-galvanised pressure distribution plate
3 mm anti-slip mat

Data sheet

Isotop® SE-DE

Sandwich vibration damping pad for double elastic bearing for load ranges between 105 kg and 2,840 kg
Overall height 149 mm
Isolating layer made from Sylomer® or Sylodyn®
Natural frequency from 5.7 Hz
Hot dip galvanised pressure distribution plate
60 mm-thick, heavy settling mass
M12 internal thread

Data sheet

Isotop® SE-DE Elevator

Sandwich vibration damping pad for double elastic bearing for load ranges between 150 kg and 3,480 kg
Overall height 111.5 mm
Isolating layer made from Sylomer® or Sylodyn®
Natural frequency from 8.8 Hz
Hot dip galvanised pressure distribution plate
60 mm-thick, heavy settling mass
M12 internal thread

Data sheet

Find the most suitable sandwich vibration damping pad for your application

EquipCalc works out the most suitable product choice for your project in a matter of seconds. Inputting the weight and the quantity of bearing points provides you with an initial result. Alternatively, devices with an eccentric centre of gravity can also be determined. The integrated EquipCalc Module Planner can also model systems consisting of several modules on up to two levels and determine the most suitable Isotop® product for each one.
Register now for free and give it a try: apps.getzner.com
