Sylomer® Fire-retardant (FR) with fire-retardant effect
Sylomer® is one of the leading materials on the vibration isolation market. Sylomer® FR with a fire-retardant effect was specially developed for use in passenger carriages. This material achieves the highest fire classification HL3 (Hazard Level 3) according to EN 45545-2 standards, while retaining the exceptional damping characteristics of the material.
Sylomer® FR is impressive due to
- Consistent vibration and noise reduction over the entire service life
- EN 45545-2 certification for maximum safety
- Low material weight optimised for lightweight construction
Sylomer® FR used in carriage construction
Sylomer® FR complies with fire protection standard EN 45545-2, which applies to carriage construction. This is a requirement when using polyurethane in floating floors for rolling stock. But Sylomer® FR has even more advantages when used for this purpose.
Product features
- Elastic PU material with fire-retardant particles
- Combines spring and damping characteristics
- Static application range from 0.028 N/mm2 to 0.220 N/mm2
- Load peaks up to 4.0 N/mm2
- Mixed-cell pore structure
- Available in four graduations for optimum layout
Contacts
{"cn":[6],"at":[8,293],"ch":[8,140],"li":[8],"si":[8,11],"hr":[8],"hu":[8],"tr":[11],"pl":[17],"cz":[17],"sk":[17],"fr":[19,267],"lu":[19,238],"ru":[24],"ua":[24],"by":[24],"ee":[24],"lv":[24],"lt":[24],"md":[24],"bg":[24],"ge":[24],"az":[24],"am":[24],"tm":[24],"uz":[24],"kg":[24],"tj":[24],"kz":[24],"jp":[34,125],"tl":[39],"pg":[39],"la":[39],"bt":[39],"np":[39],"il":[40],"br":[43],"us":[85,118],"ca":[85],"it":[132],"de":[145,209,231,238],"kr":[151],"tw":[151],"nz":[151],"id":[151],"ph":[151],"bn":[151],"bd":[151],"my":[151],"sg":[151],"vn":[151],"hk":[151],"th":[151],"kh":[151],"mm":[151],"qa":[159],"ae":[159],"sa":[159],"eg":[159],"om":[159],"kw":[159],"iq":[159],"ir":[159],"sy":[159],"lb":[159],"dz":[159],"ma":[159],"tn":[159],"ly":[159],"jo":[159],"ve":[171],"co":[171],"ec":[171],"pe":[171],"cl":[171],"ar":[171],"bo":[171],"py":[171],"uy":[171],"gb":[195,293],"ie":[195],"be":[238],"nl":[238],"se":[238,266],"no":[238,256],"dk":[238,256],"fi":[238,256],"es":[262],"pt":[262],"in":[276]}
Downloads
4 documents available • Download all

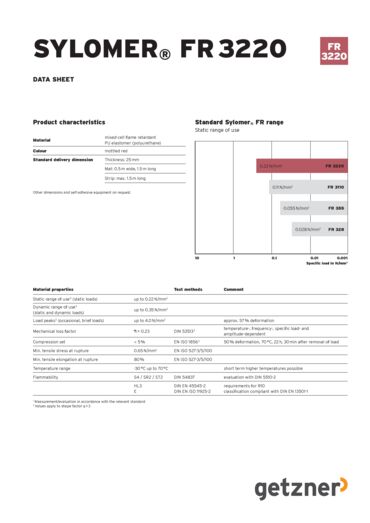

Data Sheet Sylomer FR 3220 EN
261.08 KB

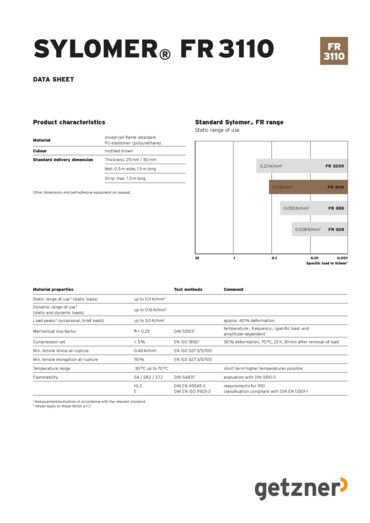

Data Sheet Sylomer FR 3110 EN
223.92 KB

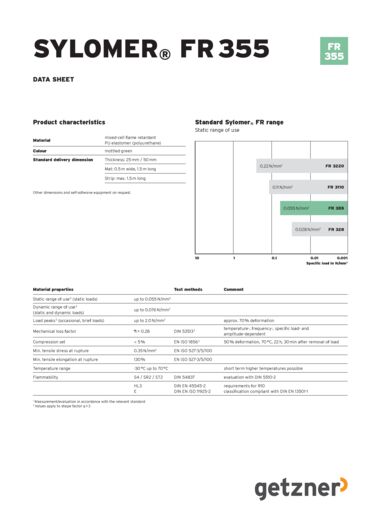

Data Sheet Sylomer FR 355 EN
228.44 KB

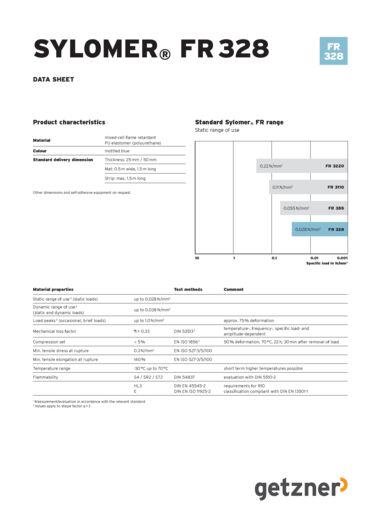

Data Sheet Sylomer FR 328 EN
220.2 KB
